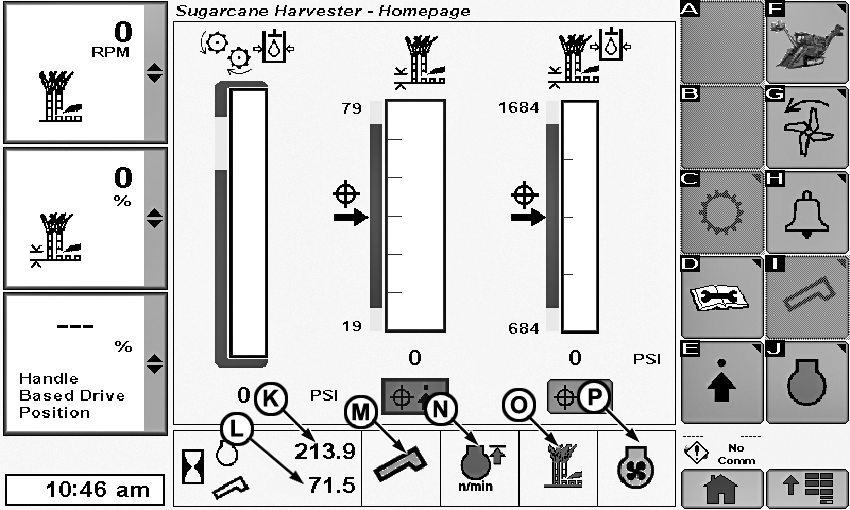

Sugar Banner Screen

CQ293103-19-13FEB12

K: Engine hours.

L: Elevator hours.

M: Elevator active icon — Green if the elevator is ON, and gray if the elevator is OFF.

N: Field cruise icon — Green if field cruise is ON, and gray if the field cruise is OFF.

O: Basecutter Forward / Reverse — Green if the basecutter is in forward, Yellow if the basecutter is in reverse, and Gray if the basecutter is OFF.

P: Reversing fan icon — Green if cooling fan is active and yellow if cooling fan reversing cycle is being ran.
