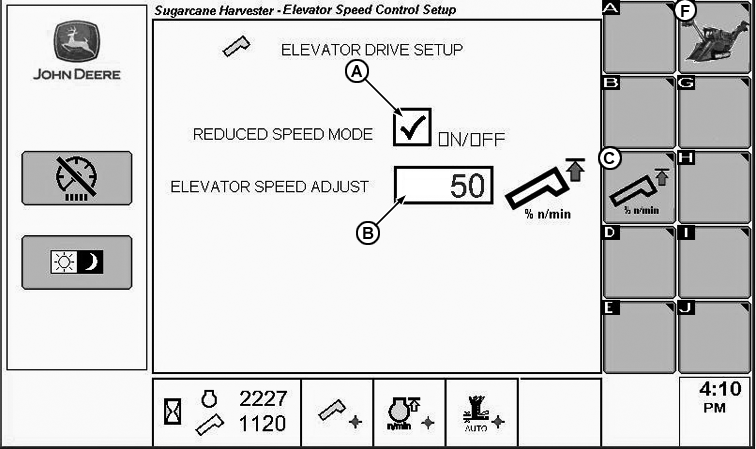

Elevator Setup Screen

CQ293108-19-14FEB12

A: Reduced speed mode for the elecator. this mode reduces the speed of the elevator by a % of maximum speed. Default is OFF and speed when feature not enabled.

B: Elevator speed adjustment. User reduces the speed of the elevator by a % of maximum speed.

Soft keys

C: Activates the elecator speed set point box.

F: Back to sugarcane home page.
