Track Steering Bias Setup

CQ293147-19-10MAY12

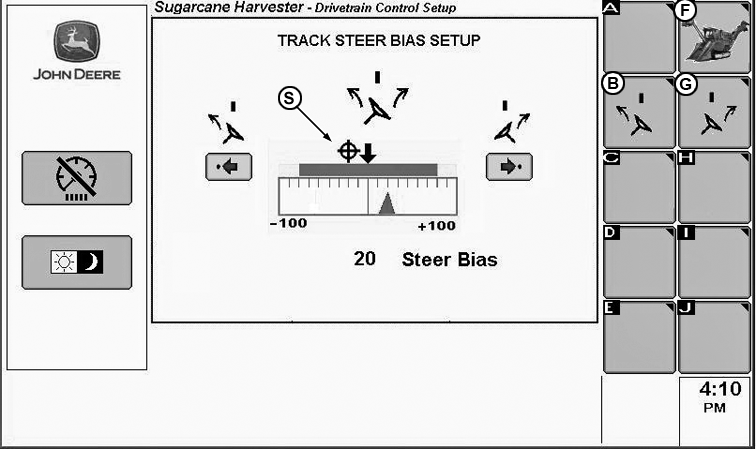

S: Track steering bias indicator graph. this screen allows the operator to increase the track bias from left to right via soft keys B and G.

Soft keys

B: Increase steer bias to the left.

G: Increase steer bias to the right.

F: Back to sugarcane home page.
