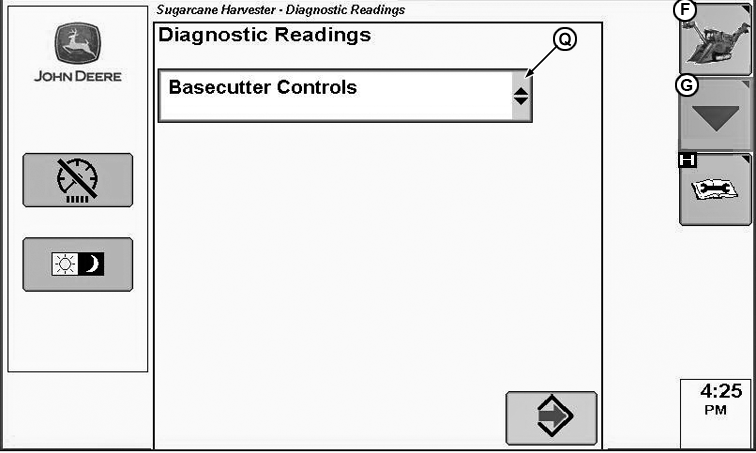

Diagnostic Readings Pages

CQ293110-19-14FEB12

Q: Allows the user the ability to read a diagnostic address parameter for any Deere electronic control unit on the CAN bus. This includes the ECU, PTP/PSC, and VCU. This screen activates a drop down menu the user can choose the system.

Soft keys

F: Back to sugarcane home page.

G: Increase steer bias to the right.
