Interpreting the Serial Number of Your Machine 13 digits PIN

CQ285274-UN-02MAR10

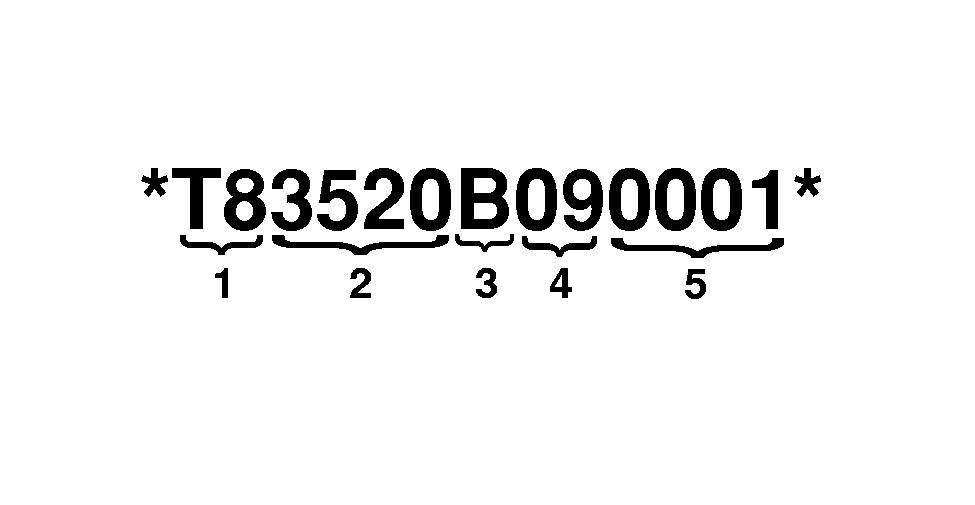

13 digits PIN examples

Interpreting the Serial Number of Your Machine
1	Code of producing unit	NW— Machines produced at JD Catalão T8— Machines produced at JD Thibodaux
2	Machine model
3	Serial code of Machine	A, B, C...
4	Year of production of the machine	06, 07, 08, 09, 10...
5	Sequential number	0001, 0002, 0003, 0004...

Each model has its own “sequential number”. The sequential number restarts at 0001 with the first machine produced each year.

Each model has its “Serial code of Machine”. This code will change whenever there is a significant change of the machine’s configuration.
