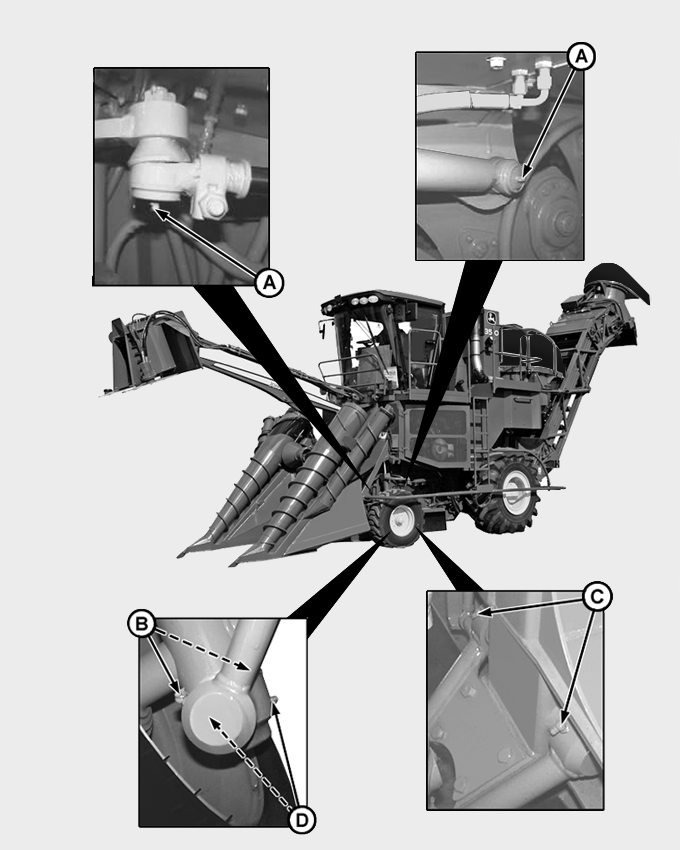

Steering Cylinders and Strut Assembly(Both Sides of the Machine with Wheels)

CQ280153-UN-28MAR08

A - Steering cylinder
(2 fittings on each side)

B - Suspension cylinder
(2 fittings on each side)

C - Strut assembly
(2 fittings on each side)

D - Cylinder base
(2 fittings on each side)
