Check Engine Coolant Level

CQ280157
CQ280157-UN-13FEB08

  1. The expansion tank is located on the upper left-hand side of the harvester.

  2. If coolant level does not appear within the marked area of the sight gauge, remove expansion tank cap and add fluid.

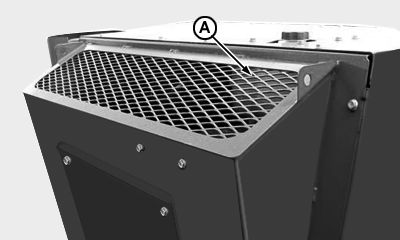

    NOTE: The engine coolant level can be verified in (A) position, through the fence.

  3. Add coolant to expansion tank as needed.

GB52027,000053D-19-20100308
