Checking Hydraulic Oil Level

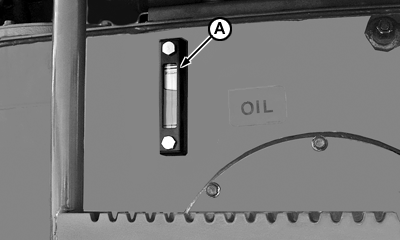

CQ280158
CQ280158-UN-29FEB08

IMPORTANT: Starting engine without oil in the hydraulic tank will result in pump damage.

  1. Park harvester on level surface. Check oil level.

  2. When oil is cold, level must be within sight guage. If not, add oil to 6mm (.25 in) below sight guage top.

  3. Add oil when oil level is below that position. See "Adding Hydraulic Oil".

    NOTE: Platform should be level, elevator in the raised position and the topper all the way down. Allow 30 minutes for oil to level after shutting down the engine.

GB52027,000053E-19-20100115
