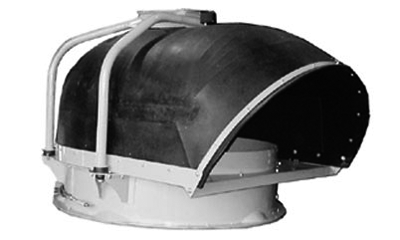

Primary Extractor

CQ280142-UN-31MAR08
Using a fan, the extractor removes trash, leaves and dirt from
the cane as it is dropped into the elevator basket. The separated
debris and leaves are directed onto the ground behind the harvester
by the primary extractor hood. This is a major part of the cleaning
process.
|
|
GB52027,0000561-19-20080214
|
|
