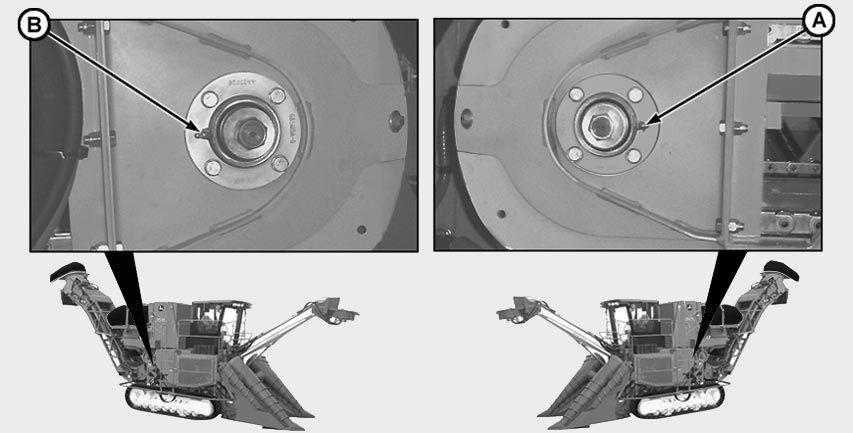

Elevator (Both Sides of Machine)

CQ280254-UN-01APR08

A - Elevator bearing (left-hand side—
1 fitting)

B - Elevator bearing (right-hand side—1 fitting)

NOTE: Lubricate elevator bearings with only 3 shots every 250 hours, excessive lubrication damages seals, causing premature faults.

Use a manual grease pump.
