Feed Rollers

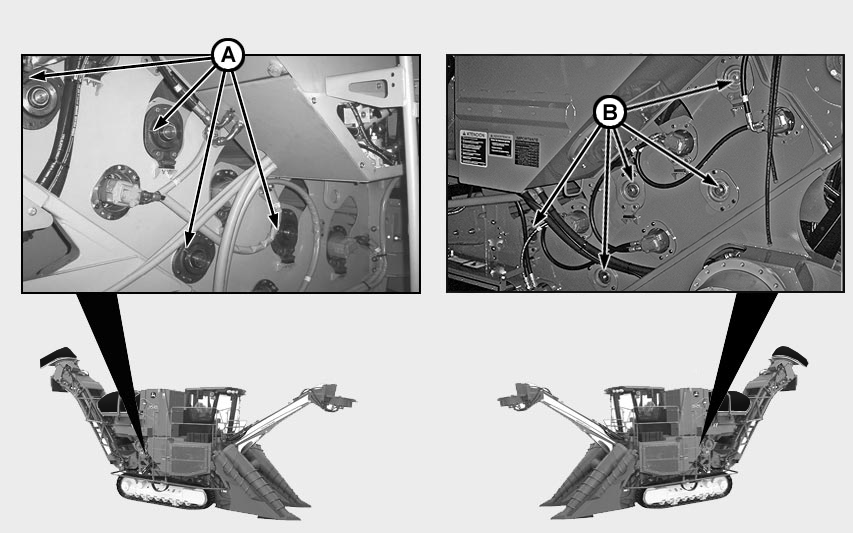

CQ281995-UN-03NOV08

A - Feed Rollers (right-hand side—4 fittings)

B - Feed Rollers (left-hand side—5 fittings)

NOTE: Lubricate feed rollers with only 3 shots every 250 hours, excessive lubrication damages seals, causing premature faults.

Use a manual grease pump.
