Rear Axle Service

CQ282542-UN-01DEC08

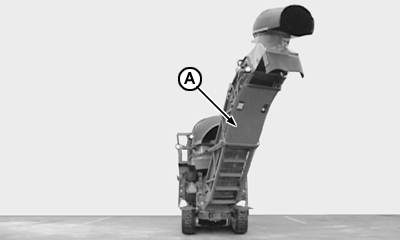

CAUTION: Before tighten inner nut, turn the elevator (A) 45° to the opposite side of the track that will be adjusted.

1. Lower the harvester as most as possible and put a stand under the elevator swing table.

2. Raise the harvester until the track slightly leaves the ground.

3.
   CQ282548-UN-01DEC08

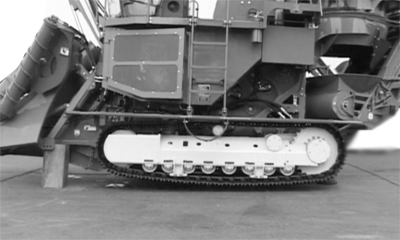

   Place another stand under the “H” of crop divider holding point and lower the harvester until the frontal portion of the track leaves the ground as well.

   IMPORTANT: Ensure that harvester is supported and free of falling risk.

---




4.
   CQ282549-UN-01DEC08

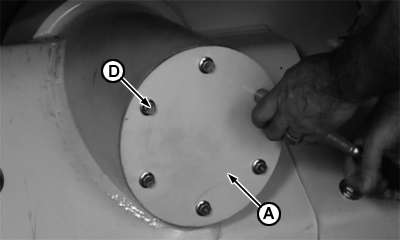

   Remove the cover (A) loosing screws (D).

---




5.
   CQ282552-UN-01DEC08

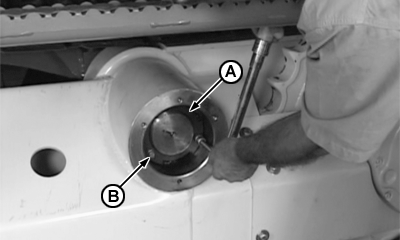

   Loose the screws (B) and remove outer nut (A).

---




6.
   CQ282551-UN-01DEC08

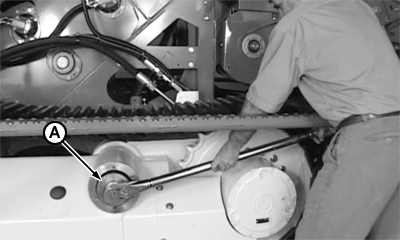

   Tighten the inner nut as specified using the special tool 0290289270 (A).

   Item	Measurement	Specification
   Rear axle inner nut	Torque	850 N·m (625 lb-ft)

---




7.
   CQ282552-UN-01DEC08

   Install the outer nut (A) tightening it until it hits the inner nut.

---




8. Loose it slightly until its holes has been aligned with inner nut ones.

9. Turn the outer nut back 360° (1 turn).

10. Tighten the 3 screws (B) according to the specification.

    Item	Measurement	Specification
    Outer nut screws	Torque	50 N·m (37 lb-ft)

11.
    CQ282553-UN-01DEC08

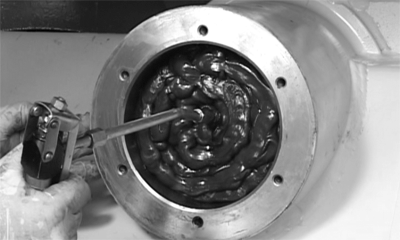

    Fill the nut compartment with grease.

---




12.
    CQ282554-UN-01DEC08


    CQ282549-UN-01DEC08

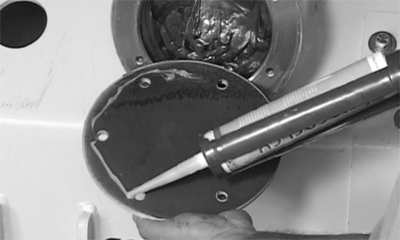

    Apply silicon in the cover (A) and install it tightening the screws (D).

---
