Greasing Front Wheel Hub Bearings

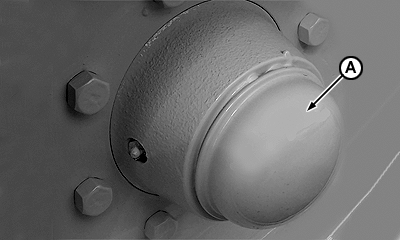

  1. CQ282602
    CQ282602-UN-05MAR09

    Remove the hub cap (A) on the front wheel hub assembly.


  2. Inspect the bearing for adequate grease. If the grease has harden or is extremely dirty remove it from the hub.

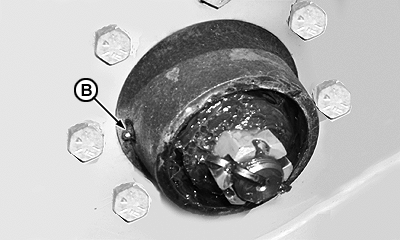

  3. CQ282603
    CQ282603-UN-05MAR09

    To add grease to the front hub assembly proceed as follows:

    1. Elevate the front wheel off the ground.

      IMPORTANT: While the wheel is elevated, check it for excessive free play, if the assembly has excessive free play consult Repair Tech manual to see the appropriate repair procedure.

    2. Pump three pumps of grease into the grease fitting (B) on the hub assembly, and disconnect the grease gun. Turn the wheel assembly for three turns. Reconnect the grease gun and continue this procedure until fresh grease discharges from all locations on the bearing.

    3. Pack the hub cap (A) with fresh grease and reinstall it on the hub assembly.

GB52027,0000946-19-20111222
