Steering Column

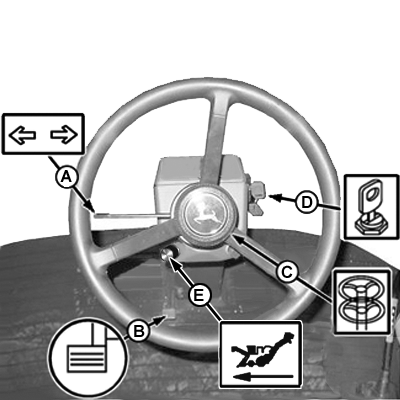

CQ282614-UN-11MAR09

A - Turn Signal Switch

B - Steering Column Tilt

C - Steering Column Vertical Adjustment

D - Ignition Key

E - Varitorq (Wheel Only)

A - Turn Signal Switch: Allows operator to indicate left or right-hand turns.

B - Steering Column Tilt: Allows operator to tilt steering column to desired location. To tilt, step pedal (B) and pull the Steering Column.

CAUTION: Adjust steering wheel only when machine is stopped.

C - Steering Column Vertical Adjustment: Allows operator to adjust steering column up or down.
Loosen hub and push or pull wheel to position. Slightly tighten hub to hold steering wheel in positon.

D - Ignition Key: Allows key switch to be turned to:

First Position .............. OFF

Second Position .............. Accessories

Third Position .............. Run

Fourth Position .............. Start

E - Varitorq (Wheel Machines): The Varitorq Control Potentiometer regulates the speed and torque of the ground drive motors. With the potentiometer in the Turtle position, the ground drive motor will have maximum torque but minimum speed. With the potentiometer in the Rabbit position, the ground drive motor will have minimum torque and maximum speed.
