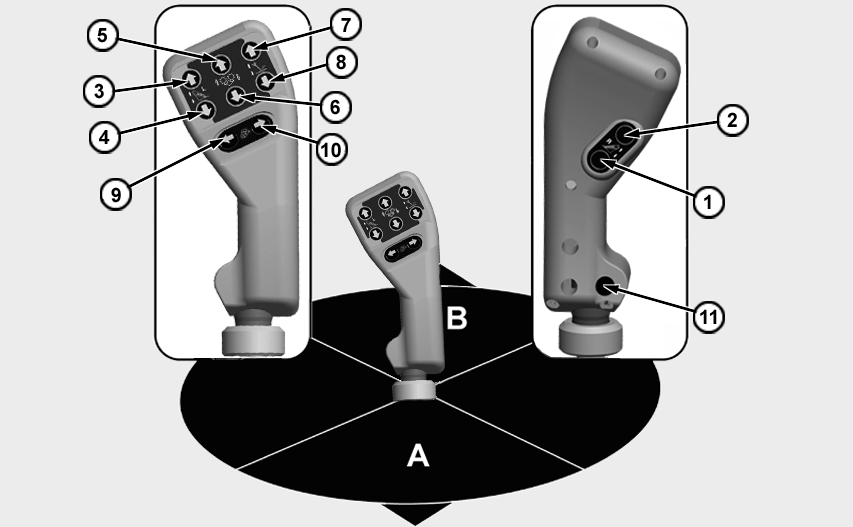

Joystick Control

CQ282604-UN-15JAN10

A - Rearward the Harvester

B - Forward the Harvester

1 - Lowers Right Crop Divider

2 - Raises Right Crop Divider

3 - Raises Left Crop Divider

4 - Lowers Left Crop Divider

5 - Topper Up

6 - Topper Down

7 - Raises Base Cutter

8 - Lowers Base Cutter

9 - Bin Flap Out

10 - Bin Flap In

11 - Horn

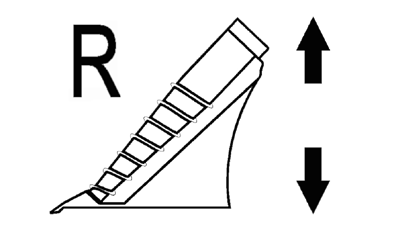

CM023500021-UN-07FEB05

1 - Lowers Right Crop Divider—When the button is depressed, the right crop divider is lowered. When the button is released, the crop divider will stop at the last position to which it was moved.

2 - Raises Right Crop Divider—When the button is depressed, the right crop divider is raised. When the button is released, the crop divider will stop at the last position to which it was moved.

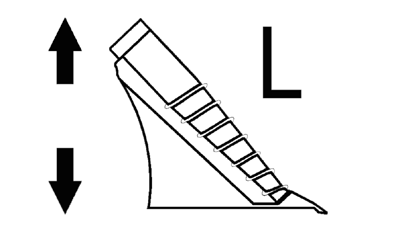

CM023500022-UN-07FEB05

3 - Raises Left Crop Divider—When the button is depressed, the left crop divider is raised. When the button is released, the crop divider will stop at the last position to which it was moved.

4 - Lowers Left Crop Divider—When the button is depressed, the left crop divider is lowered. When the button is released, the crop divider will stop at the last position to which it was moved.

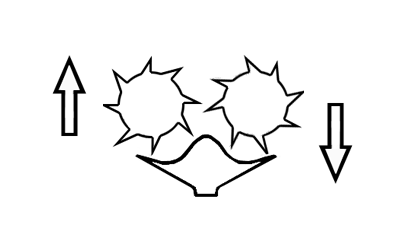

CQ282610-UN-26MAR09

5 - Push button to move the Topper up.

6 - Push button to move the Topper down.

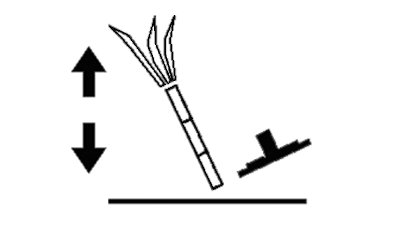

CQ282617-UN-12MAR09

7 - When this switch is depressed, the base cutter is raised.

8 - When this switch is depressed, the base cutter is lowered.

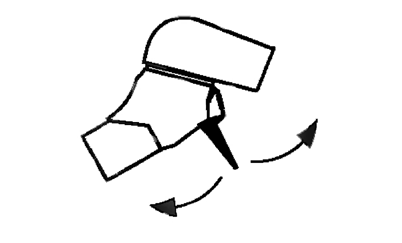

CM023500028-UN-07FEB05

9 - Push button to move the bin flap out.

10 - Push button to move the bin flap in.
