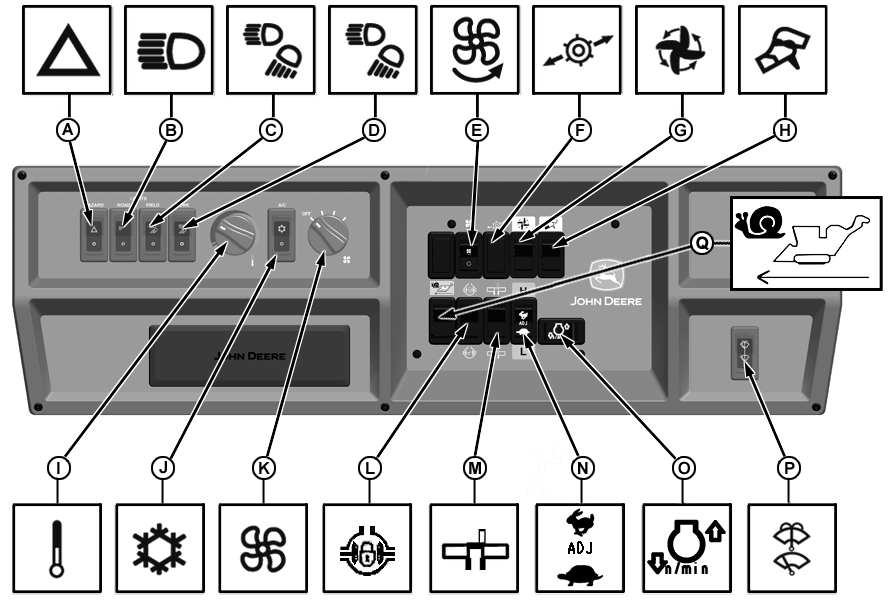

Overhead Panel

CQ284928-UN-10DEC11

A - Hazard Lights Switch

B - Road Light Switch

C - Field Light Switch

D - Work Light Switch (engine compartment)

E - Reversible Cooling Fan Switch

F - Adjustable Knock Down Roller

G - Primary Extractor On/Off

H - Secondary Extractor On/Off

I - Heat Temperature Control

J - Air Conditioning Switch

K - Air Conditioning and Heating Fan

L - Positrac On/Off

M - Transport Switch (Wheel Only)

N - Ground Drive HI/LOW Switch (If equipped)

O - FieldCruise

P - Front Wiper/Washer Switch

Q - Slow Maneuvering Switch (Track Only)
