Transport Switch (Wheel)

CQ282625-UN-16MAR09

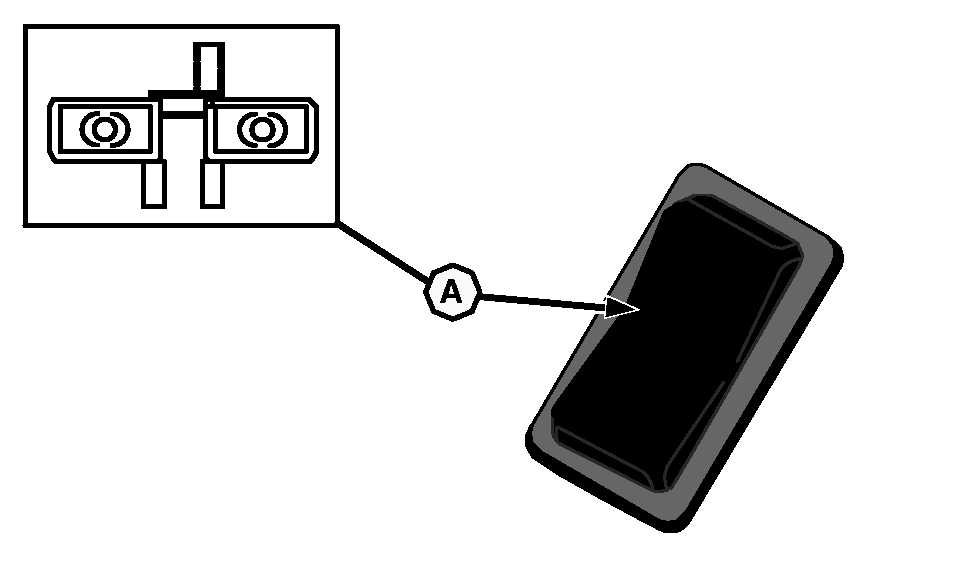

A - Transport Switch

Brake Pedals may be used individually to assist in low-speed turning by flipping the transport switch to the “OFF” position, which unlatches the brake pedals. Depress brake pedal that corresponds with the direction of the turn.

CAUTION: To avoid injury or death to you or others from loss of machine control during transport, verify Transport Switch is in the “ON” position before road transport.

When machine is to be driven at high speed or when brakes are not needed to assist in low speed turning, make sure Transport Switch is in the “ON” position, which locks the brake pedals together. With the Transport Switch in the “ON” position, the machine will stop faster.
