Cab Pedals

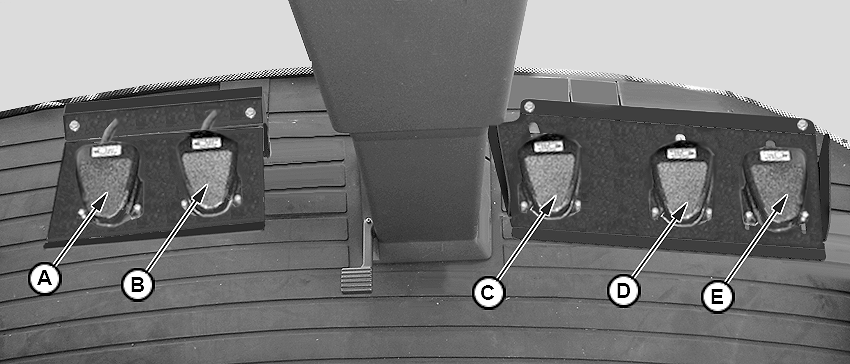

CQ282629-UN-15JUN09

Located on the left side of the steering column are the elevator swing pedals. The elevator must be in the up position before swinging. If the left pedal (A) is depressed, the elevator will swing to the left. If the right pedal (B) is depressed, the elevator will swing to the right.

On the right side of the steering column, there is the ON/OFF elevator pedal (C).

On a wheel harvester, there is a left-hand (D) and right-hand (E) brake pedal located on right side of the steering column which control the appropriate rear wheel. The brakes are also used to aid in steering on curves. Applying a left-hand or right-hand brake disables that pump. The parking brake must be used in an emergency.

On a track harvester, there are two optional pedals located on right side of the steering column:

• AutoTrac resume pedal (D)
• HI/LOW ground drive pedal (E)
