Removing and Installing Fuel Filters

CAUTION:

X9811-UN-23AUG88

High Pressure Fluids

If ANY fluid is injected into the skin, it must be surgically removed within a few hours by a doctor familiar with this type of injury or gangrene may result. Doctors unfamiliar with this type of injury may call the Deere & Company Medical Department in Moline, Illinois, or other knowledgeable medical source.

CAUTION: Due to High Pressure Common Rail system design, fuel in filter is likely to be under high pressure. To avoid possible personal harm, open valves (B) and (J) on bottom of filters to relieve pressure prior to removing each filter.

IMPORTANT: Replace fuel filter elements anytime audible alarm sounds and trouble codes indicate plugged fuel filters (low fuel pressure). If no alarm sounds during the 12 month service interval, replace elements at that time, or after 250 hours operation, whichever comes first.

Both Primary and Final filters must be replaced at the same time.

Remove and Install Primary Fuel Filter Element

IMPORTANT: Do NOT pre-fill filter with fuel. This may introduce debris into the fuel system.

1.
   RG14250-UN-06JUN05

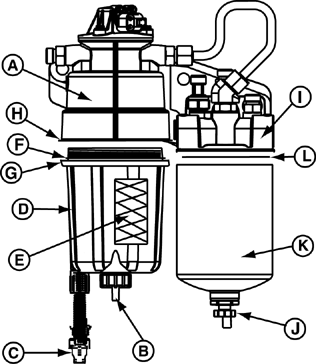

   A - Primary Filter Header

   B - Primary Filter Canister Drain Valve

   C - Water-In-Fuel Sensor Connector

   D - Primary Filter Canister

   E - Primary Filter Element

   F - Primary Filter Packing

   G - Primary Filter Canister Lip

   H - Primary Filter Header Lip

   I - Final Fuel Filter Header

   J - Final Filter Drain Valve

   K - Final Fuel Filter

   L - Final Filter Packing

   Thoroughly clean primary filter header (A) and surrounding area to keep from getting dirt and debris into fuel system.

---




2. Connect a fuel drain line to primary filter drain valve (B) on bottom of filter and drain all fuel from the primary filter canister (D).

3. Disconnect water-in-fuel sensor connector (C).

4. Turn primary filter canister (D) counterclockwise (CCW) to remove.

5. Once primary filter canister (D) is removed, pull primary filter element (E) down to remove from primary filter header (A).

6. Inspect primary filter header (A) and primary filter canister (D) sealing surfaces. Clean as required.

7. Place new packing (F) on primary filter canister (D).

8. Place thin film of fuel on primary filter packing (F).

9. Place new primary filter element (E) in canister (D) with tangs on bottom going into canister.

10. Screw canister (D) into filter header (A), turn clockwise (CW). Tighten until canister lip (G) snugly mates with header lip (H).

11. Turn filter additional 3/4 turn after seal contact with header.

12. Connect water-in-fuel sensor connector (C).

NOTE: Be sure to also replace final fuel filter and then prime system (see following).

Remove and Install Final Fuel Filter

IMPORTANT: Do NOT pre-fill filter with fuel. This may introduce debris into the fuel system.

NOTE: Final filter replacement instructions are printed on the new filter.

RG14250-UN-06JUN05

A - Primary Filter Header

B - Primary Filter Canister Drain Valve

C - Water-In-Fuel Sensor Connector

D - Primary Filter Canister

E - Primary Filter Element

F - Primary Filter Packing

G - Primary Filter Canister Lip

H - Primary Filter Header Lip

I - Final Fuel Filter Header

J - Final Filter Drain Valve

K - Final Fuel Filter

L - Final Filter Packing

1. Thoroughly clean final filter header (I) and surrounding area to keep from getting dirt and debris into fuel system.

2. Connect a fuel drain line to final filter drain valve (J) on bottom of filter and drain all fuel from the filter.

3. Turn final filter (K) counterclockwise (CCW) to remove.

4. Inspect final filter header (I) sealing surface. Clean as required.

5. Install new final filter fuel drain valve (J), tighten to specification.

   Item	Measurement	Specification
   Final Fuel Filter Drain Valve	Torque	3.4—4 Nm (30—35 lb-in)

6. Place new final filter packing (L) on filter.

7. Place thin film of fuel on packing (L).

8. Screw final fuel filter (K) into secondary fuel filter header (I), turn clockwise (CW). Tighten until final fuel filter (K) snugly mates with final fuel filer header (I).

9. Turn filter additional 3/4 turn after seal contact with header.

NOTE: Turn ignition Key to ON for 60 seconds to prime the fuel system before starting engine. It may be necessary to turn key off and on again to reprime the system before starting.
