Engine Throttle Switch

CQ282621-UN-13MAR09

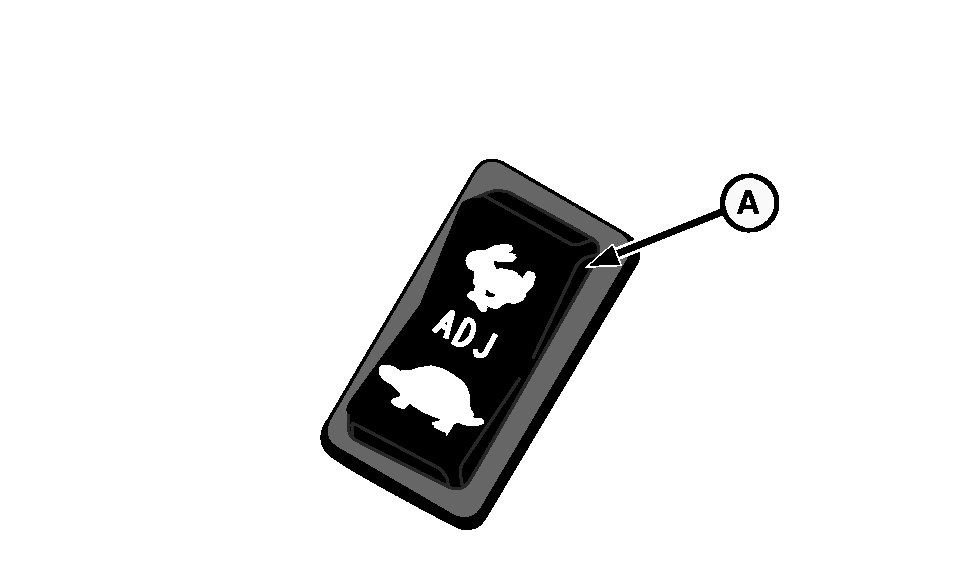

A - Engine Throttle Switch

This is a three position switch. The first position lets the engine run at 850 rpm . The second position sets the engine at 1500 rpm and the third position sets the engine rpm at full throttle (2210 rpm).
