Dimensions

CQ285205-UN-02FEB10

High Capacity Elevator Direct Drive 5 ft Primary Extractor (Track)

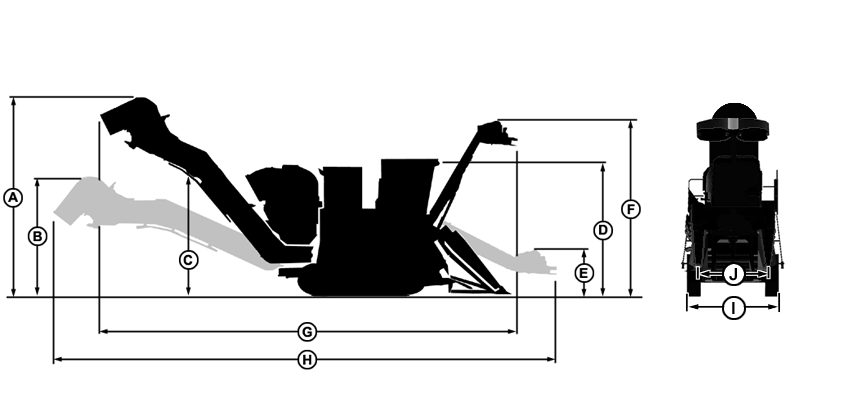

Harvester Dimensions
Reference	3520 Track	3520 Wheel
A	5900 mm	5900 mm
B	3550 mm	3550 mm
C	3860 mm	3880 mm
D	4030 mm	4060 mm
E	1320 mm	13600 mm
F	5150 mm	5180 mm
G	13600 mm	13600 mm
H	15000 mm	15000 mm
I	2360 mm	2440 mm
J	1500 mm	1520 mm
