Accessing Batteries

  1. CQ285253
    CQ285253-UN-23FEB10

    Footprints merely illustrative

    To access the battery, first of all, tilt the cab following the tilt procedure mindfully.

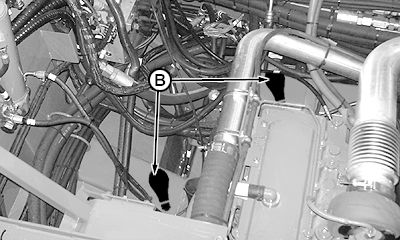

  2. Access the engine compartment stepping on footprints (B) showed in the picture.

    CAUTION: Do not access engine compartmet while the engine is warmed.

  3. CQ285252
    CQ285252-UN-23FEB10

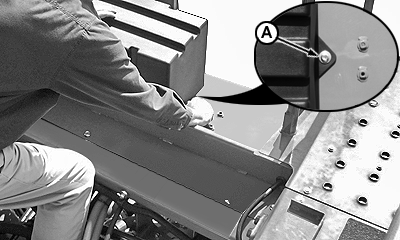

    Remove the bolts (A) from both sides of the cover.
