Removing and Installing 30 Micron Fuel Filter

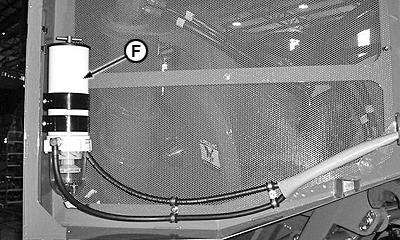

  1. CQ285268
    CQ285268-UN-26FEB10

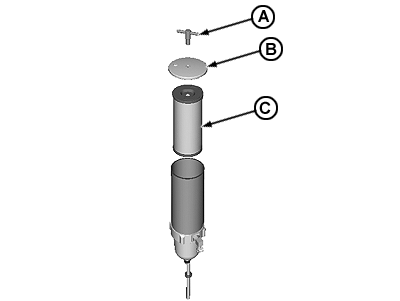

    CQ285267
    CQ285267-UN-26FEB10

    Thoroughly clean filter enclosure (F) and surrounding area to keep from getting dirt and debris into fuel system.


  2. Turn the knob (A) and remove the cover (B).

  3. Remove the old fuel filter (C).

  4. Install the new fuel filter element and close the enclosure.

    IMPORTANT: Do NOT pre-fill filter with fuel. This may introduce debris into the fuel system.

  5. Place the start key on Accessory position (Engine Stopped) during 60 seconds before starting the engine. This while will let fuel pump fill up the filter with fuel.
