Cleaning Engine Air Pre-filter Outer Screen

CQ285272-UN-02MAR10

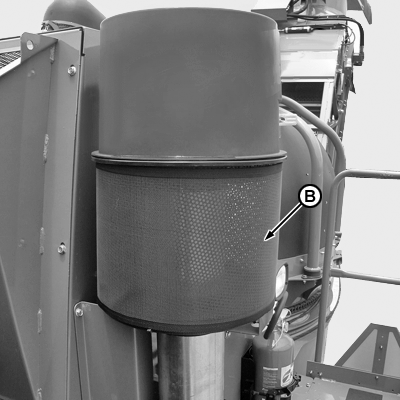

The engine air pre-filter outer screen is held with Velcro.

Remove the outer screen and clean it using compressed air.

Install the screen back holding it with Velcro.
