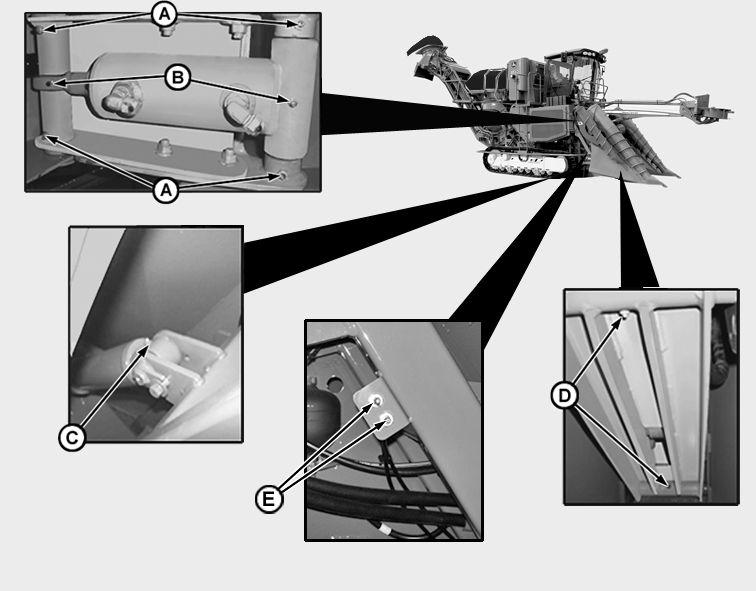

Crop Dividers (Both Sides of Machine)

CQ285283-UN-02MAR10

A - Tilt assembly linkage
(4 fittings on each side)

B - Tilt cylinder
(2 fittings on each side)

C - Lift Cylinder bult end
(1 fitting on each side)

D - Pins of lower linkage (2 fittings on each side)

E - Crop Divider (2 fittings on each side)
