Cleaning Radiators

  1. IMPORTANT: Shut off engine and remove starter key before cleaning cooling radiators.

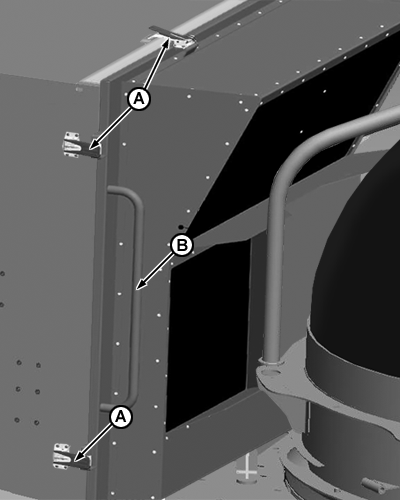

    Release locks (A) and turn the assembly clockwise with hand grip (B).

    CQ280374
    CQ280374-UN-29MAY08

    CAUTION: The door is heavy.


  2. Clean the radiators.

  3. To clean these components with compressed air, blow from inside outwards.

    IMPORTANT: When using high pressure air or water, be careful of fin damage to coolers. Straighten bent fins. Bent fins will decrease cooler performance.

GB52027,00011DB-19-20100302
