Engine Wiring Harness Layout

RG14937-UN-20SEP06

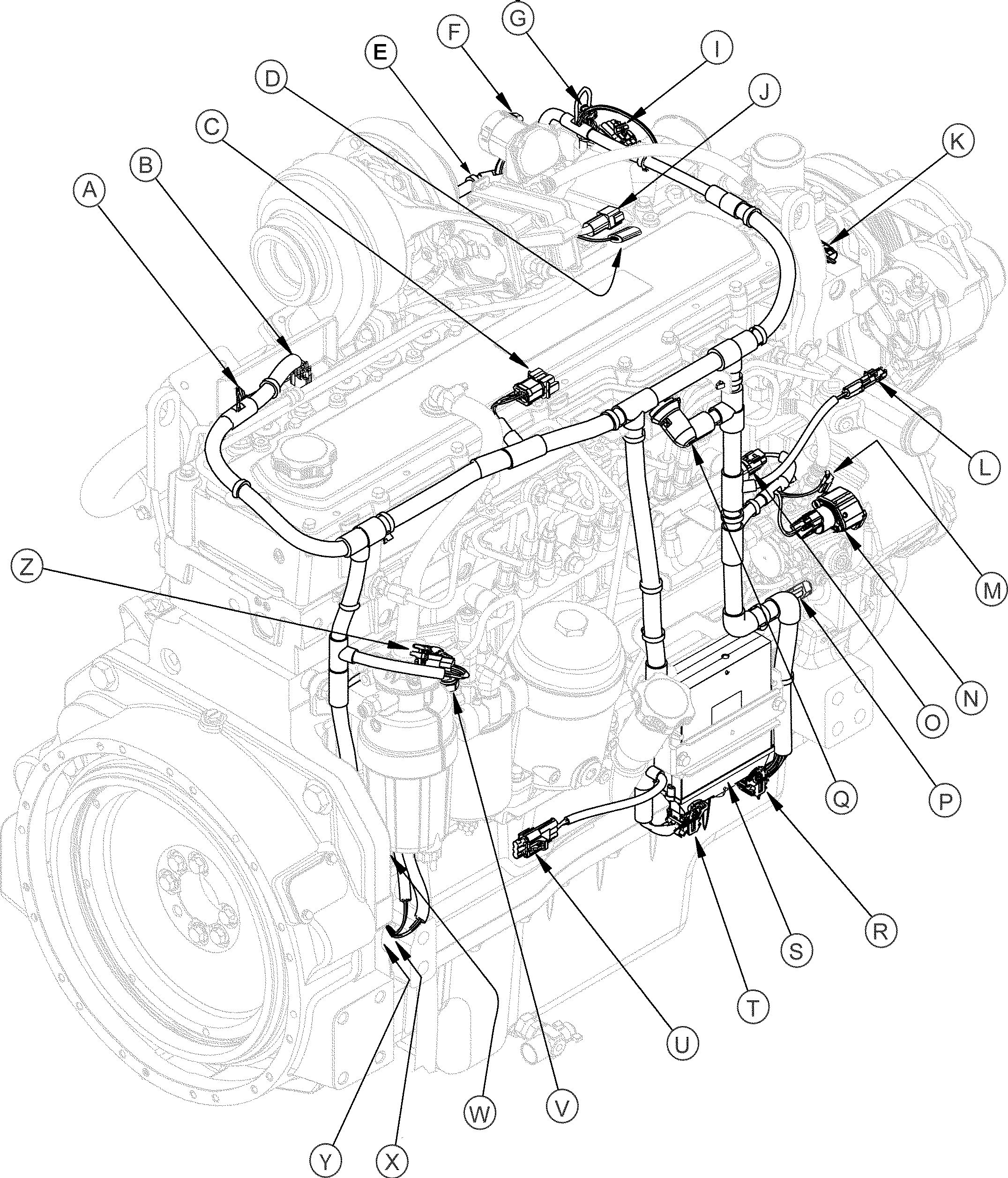

Electrical Wiring Harness Layout

A - Manifold Air Pressure (MAP) Sensor Connector

B - Exhaust Gas Recirculation (EGR) Mixed Air Temperature Sensor Connector

C - Turbocharger Sensor Jumper Connector

D - VGT Turbocharger Connector

E - Exhaust Gas Recirculation (EGR) Exhaust Temperature Sensor Connector

F - Exhaust Gas Recirculation (EGR) Valve Sensor Connector

G - Exhaust Pressure Sensor Connector

H - Exhaust Gas Recirculation (EGR) Fresh Air Sensor Connector

I - Air Heater Jumper Connection

J - VGT Turbocharger Connector

K - Coolant Temperature Sensor Connector

L - Alternator Excitation Connector

M - Fuel Temperature Sensor Connector

N - Fuel Pump Control Valve Connector

O - Fuel Rail Pressure Sensor Connector

P - Camshaft Sensor Connector

Q - Fuel Injector Connector

R - ECU Connector

S - ECU

T - ECU Engine

U - Auxiliary Power Connector

V - Fuel Pressure Sensor

W - Water In Fuel Sensor

X - Crankshaft Speed/Position Sensor

Y - Oil Pressure Sensor

Z - Fuel Transfer Pump Sensor
