Charging Base Cutter Lift Accumulators

  1. CQ285282
    CQ285282-UN-02MAR10

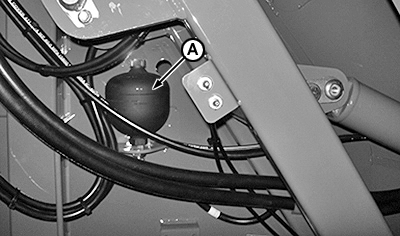

    A - Base Cutter Lift Accumulator

    Place vehicle on Base Cutter Lift Cylinders.


  2. Bleed all pressure from base cutter lift circuit.

  3. Check nitrogen pressure using JT03515 Kit.

  4. Set to 375 PSI (25.9 bar).

JG50163,00002A6-19-20120416
