Assisted Base Cutter Control (Optional)

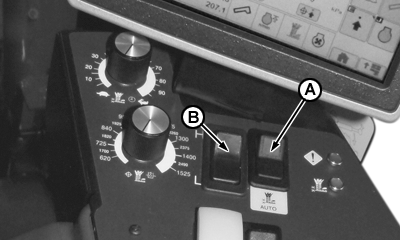

Switches

CQ291725-UN-17APR12

A - ON/OFF switch for Assisted Base Cutter Control Switch light comes on when system is turned ON.

B - HIGH/LOW pressure variation switch.

Pressure Classification
Low	620—1525 psi
High	1700—2400 psi

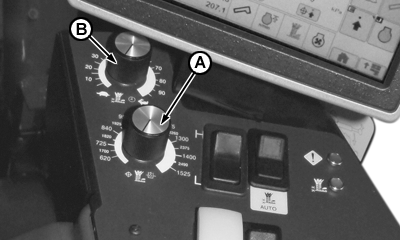

Adjustment Knobs

CQ291726-UN-17APR12

A - Base Cutter cutting pressure adjustment knob This knob lets the system know the pressure needs to be maintained.

B - Sensitivity adjustment knob. This knob adjusts the response time to basecutter pressure changes.

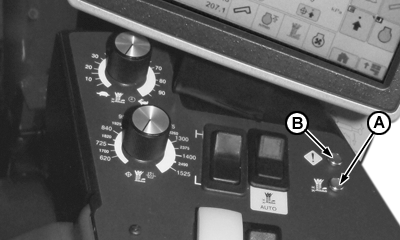

Indicator Lights

CQ291727-UN-17APR12

A - Full-beam indicator light active. This light comes on when the Assisted Base Cutter Control is active.

B - Error indicator light. This indicator light comes on when system faults occur.
