Checking Chopper Gearbox Oil Level

CQ291732
CQ291732-UN-17APR12

CQ291733
CQ291733-UN-17APR12

CQ280290
CQ280290-UN-08APR08

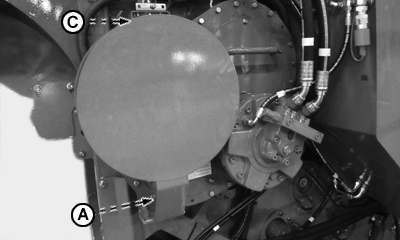

A - Drain

B - Level gauge

C - Filler plug

Oil level should be checked every 25 hours. Follow this procedure.

  1. Always check fluid level when oil is cold.

  2. Park harvester level in order to get the proper reading.

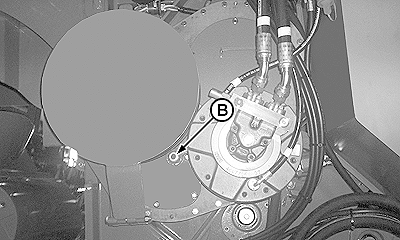

  3. Oil level should be at the top of sight gauge (B).

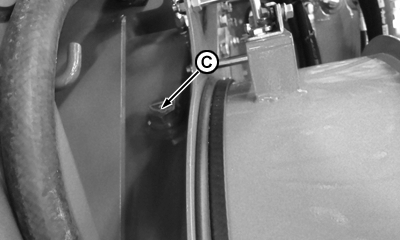

  4. Add oil as necessary through filler plug (C).

JG50163,00002AC-19-20120417
