Crop Divider

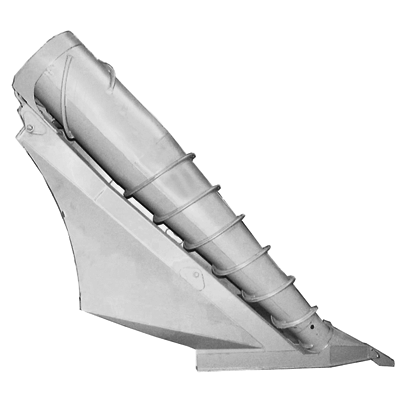

CM053510028-UN-07FEB05

The crop dividers are designed to assist in separating rows of downed or tangled cane. The crop-lift scrolls turn with a screwing motion, which picks-up the cane and separates the rows.

1. The crop divider scrolls can untangle and pick up the downed cane. When operating too fast, the cane can break and bend, causing it to hang up on the crop divider. This will cause damage to the billets and stubble.
2. Operating too fast will cause whole stalks to be pulled out from the row being harvested or from the next row. This will bring roots and dirt into the harvester, detracting from the cleaning process and damaging the stubble.
3. Always raise to the transport position when backing up the harvester. This will prevent the crop divider shoes from digging into the ground.
