Electrical Accessory Outlets

CQ280145-UN-15FEB08

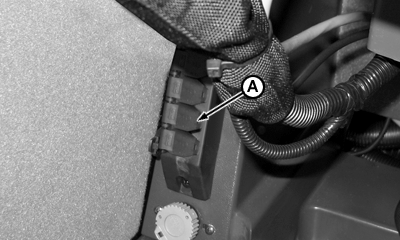

Use outlet (A) to connect and operate accessory equipment. Outlet is powered to Battery 12 VDC.

The accessory outlet has a battery unswitched and accessory switched power source each protected by a 10A fuse. Do not put more than 10A on each power source.
