Checking Oil Level in Pump Drive Gearbox

CM023500053-UN-07FEB05

CM063510007-UN-18OCT05

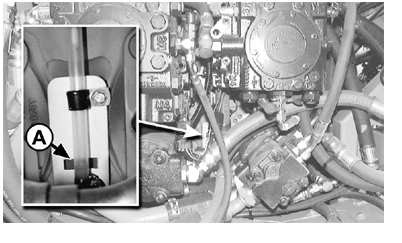

A - Sight Gauge

B - Filler Plug

Check level when oil is cold. Visually inspect sight gauge (A) which is located on the right-hand side of the harvester in the engine compartment between the bottom pumps on the pump drive gearbox. Oil level should be within the rectangle. If necessary, remove filler plug (B) and add oil to bring it to the proper level.
