Replacing Oil in Pump Drive Gearbox

CM063510007
CM063510007-UN-18OCT05

CM063510008
CM063510008-UN-18OCT05

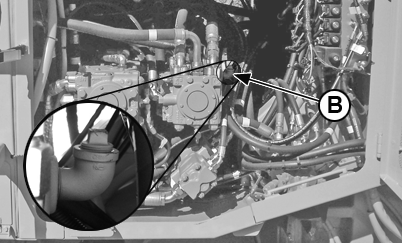

B - Filler Plug

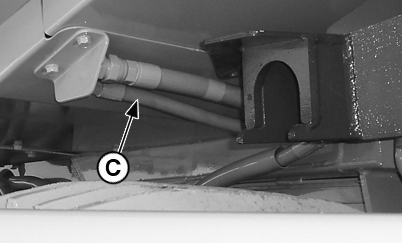

C - Pump Drive Drain Hose

  1. Make sure oil is warm before changing.

  2. Clean and remove filler plug (B). Unscrew drain hose (C) which is on the right-hand side of the machine underneath the engine compartment. Remove plug and collect oil in a suitable container. Cap and replace.

  3. After oil is completely drained, tighten drain hose (C). Dispose of waste oil properly.

  4. Fill gearbox to proper level (A). Allow time for oil to settle.

  5. Tighten filler plug (B).
