Locating Fuse and Relay Boards

CM023500084-UN-07FEB05

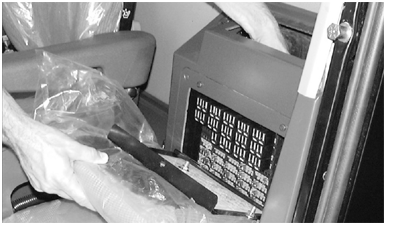

Fuses and relays are located inside the operator's cab, behind the training seat back cushion. Pull up on the retaining pin and the cushion can be removed for access. It is important, when cleaning the inside of the cab, to clean dust and debris from these items. See next page for fuse layout.
