Fresh Air Filter and Pre-Cleaner

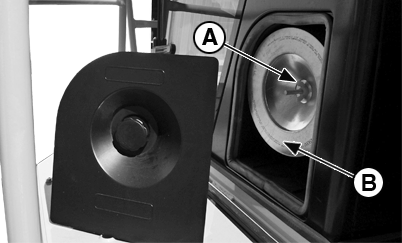

CM063510012
CM063510012-UN-19OCT05

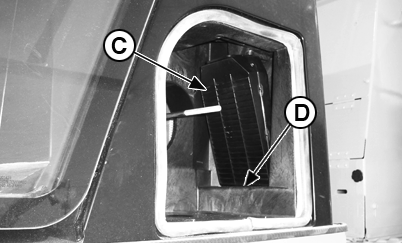

CM063510013
CM063510013-UN-19OCT05

A - Wing Nut

B - Fresh Air Filter

C - Pre-Cleaner

D - Bore

  1. Remove wing nut (A) and pull out fresh air filter (B).

  2. Push down on pre-cleaner (C) and pull it out from the top.

  3. Check hole (D) in floor under pre-cleaner for debris. Clean as necessary.

  4. Wash and dry pre-cleaner. Reinstall.

  5. Clean or replace fresh air filter as necessary.

  6. IMPORTANT: Do not overtighten knob.

    Install cover and tighten knob.
