Chopper Shafts

NW278570-UN-20OCT06

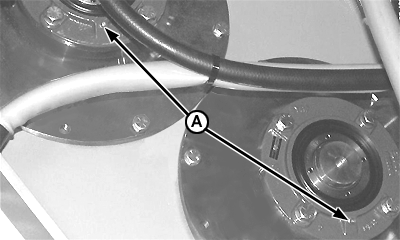

A - Chopper shaft bearings (2 fittings)

NOTE: Lubricate chopper shaft bearings with only 3 shots every 250 hours, excessive lubrication damages seals, causing premature faults.

Use a manual grease pump.
