Adjusting Left-Hand Armrest and Seat Back

H72254-UN-17MAY02

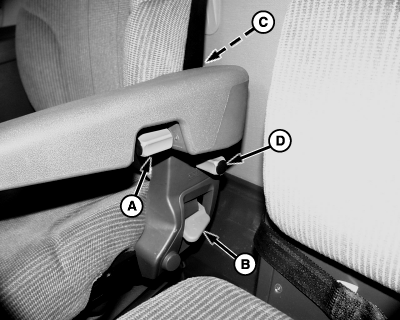

A - Left-Hand Armrest Angle Adjustment Knob

B - Seat Back Angle Adjustment Handle

C - Lumbar Back Support Adjustment Knob

D - Left-Hand Armrest Vertical Adjust Knob

To adjust the left-hand armrest up or down, use knob (A). Rotate the knob clockwise to lower and counterclockwise to raise.

Pull up on handle (B) to adjust seat back angle. Release handle when seat back is in desired position.

Turn knob (C) clockwise or counterclockwise to adjust lumbar back support.

Turn knob (D) counterclockwise to loosen. Adjust armrest to desired position, and tighten knob.
