Channel 27: Fine Tuning Bale Size

Depending on crop baled, it can occur that the measured bale diameter does not correspond to the desired diameter adjusted on monitor.

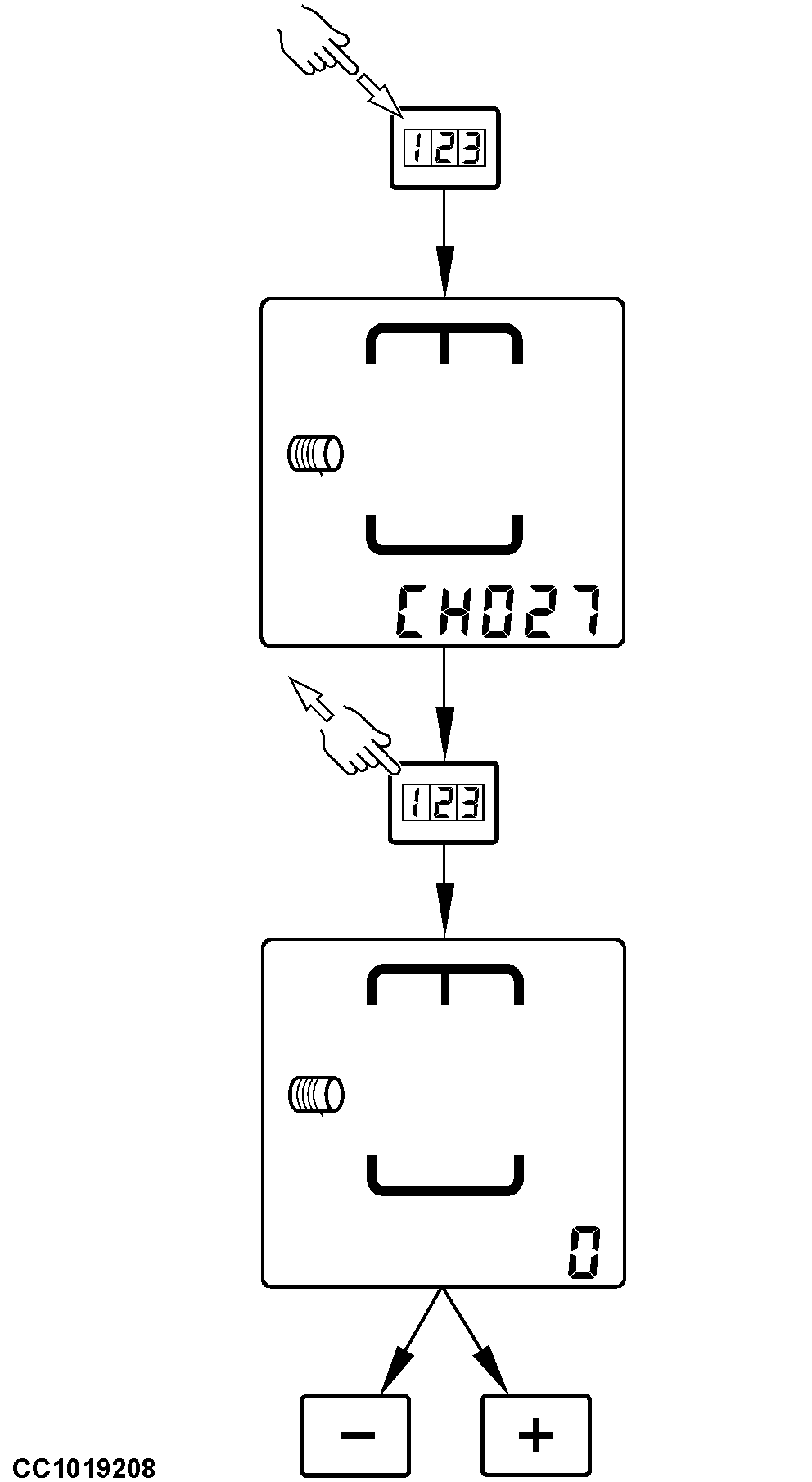

In "CH027", the monitor can be fine tuned to recover the real desired bale diameter from -20 to +20 cm ( ±8 in.).

Measure the bale diameter

Press "PLUS" or "MINUS" key to correct the bale diameter by displaying the difference between bale diameter measured minus desired bale diameter.

NOTE: To check actual bale diameter, measure bale horizontally and vertically on both ends. Add the four measurements together and divide by four to determine average bale diameter.

OUCC006,0000313 -19-12FEB01-1/1
