Adjusting Front Tread (3000 and 3010 Series Tractor)

Adjust distance from tire center to tire center (A) between a minimum of 1500 mm (59 in.) and a maximum of 2000 mm (78 in.).

Adjust tractor steering stop and fender positions so that no interference occurs when the front axle oscillates.

See your tractor operator's manual to make adjustments.

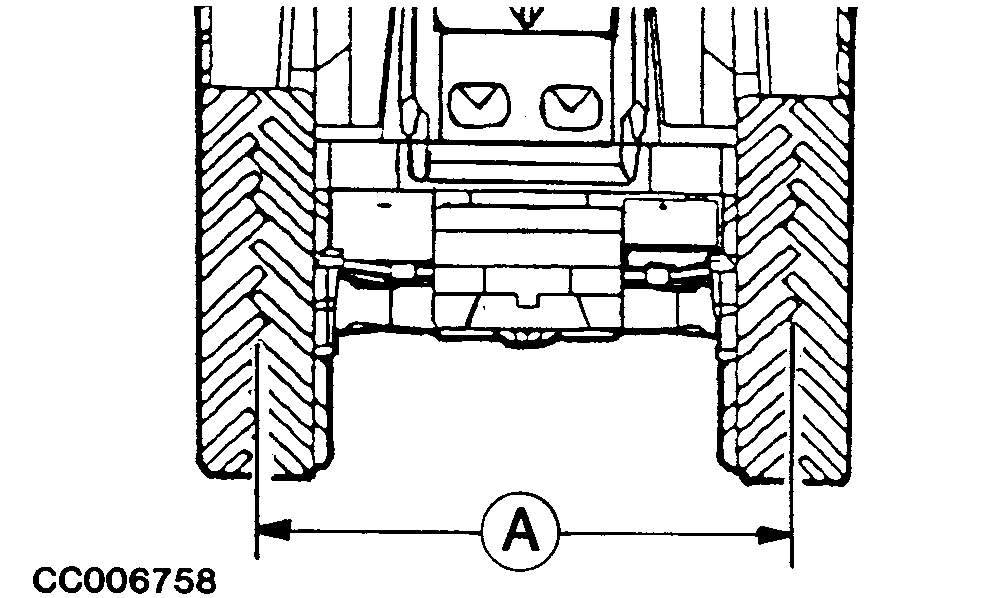

A-Tractor front tread

AG,CC03745,189 -19-30MAR99-1/1
