Levelling in Reverse

IMPORTANT: To avoid bending the bucket cutting edge on a solid object while levelling in reverse, position the bucket less than 40° below level. Use FLOAT to reduce down pressure.

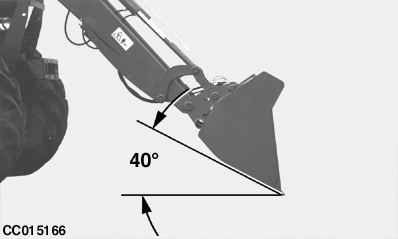

Position bucket 40° or less below level.

Use FLOAT to reduce down pressure.

Back up slowly.

AG,CC03745,42 -19-30NOV98-1/1
