Teeth for Heavy-Duty Buckets

Digging teeth cannot be used with the reversible bolt-on cutting edge. Use teeth for digging in hard ground.

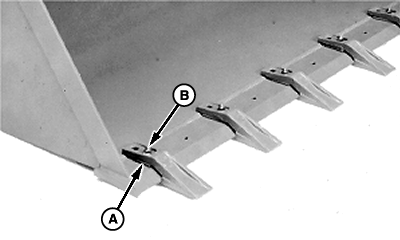

Install each tooth using spacer (A), M12 x 40 cap screw (B) and flange nuts.

A-Spacer
B-M12 x 40 Cap Screw

AG,CC03745,74 -19-23JAN99-1/1
