OMCC58296: 531, 551, 631, 651, 661, 731 and 751 Loaders(26500- ) 746 Loader, Block File: AG_OUCC006_484_19

1. 3000, 3010, 5000, 6000 and 6010 Series Tractors With Loader Multi-Function Lever.

Lever can be locked in neutral to prevent unintentional movement. To lock the lever, push on lock (A) while the lever is in its neutral position.

To unlock the lever, pull on lock (A).

A-Lock

AG,OUCC006,484 -19-31JUL00-1/3

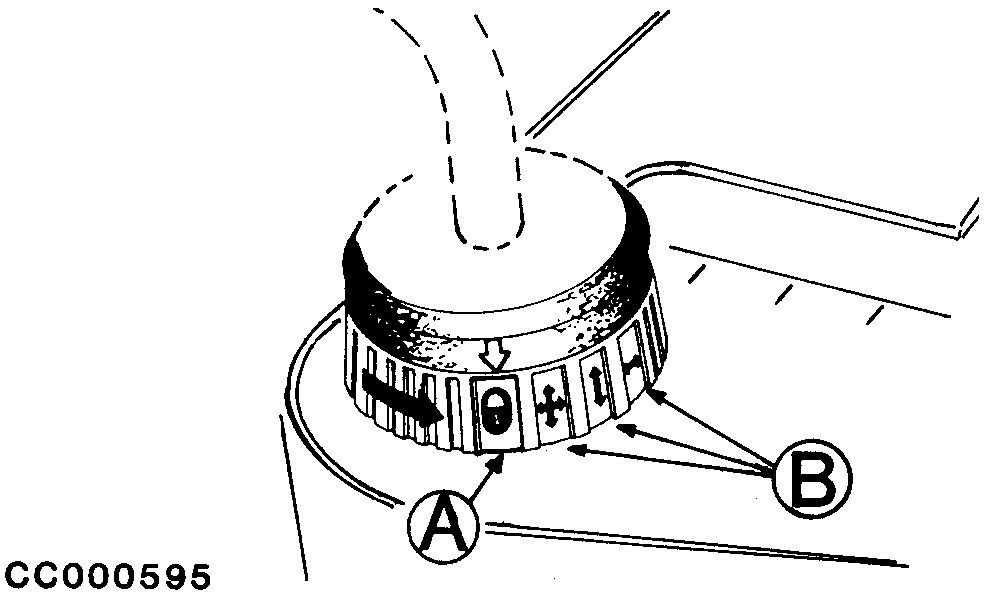

2. 6000, 6010 Series Tractors With Integrated Multi-Function Lever .

To lock the lever, rotate ring at base of lever to position (A). Positions (B) allow lever movement side to side, front to back.

A-Locked position
B-Partial locking

AG,OUCC006,484 -19-31JUL00-2/3

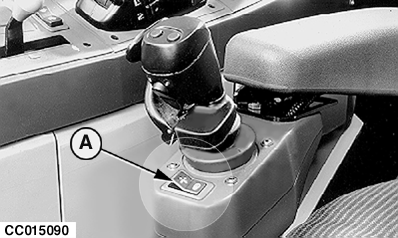

3. 6010 Series Tractors With Armrest-Integrated Multi-Function Lever.

Press on switch (A; padlock) to switch the lever off.

Press on switch (A; cross) to switch the lever on.

A-Switch

AG,OUCC006,484 -19-31JUL00-3/3
