Identifying Hose Connections on 746 Loader
NOTE:
Hoses are identified by color-coded tie bands installed on ends near fittings. Colors identify hose function.
| |
Dust Plug/Cap Color |
Hydraulic Function |
| A |
Yellow |
Bucket Cylinder-Head End |
| B |
Black |
Bucket Cylinder-Rod End |
| C |
Blue |
Lift Cylinder-Head End |
| D |
Red |
Lift Cylinder-Rod End |
| E |
Orange |
Implement Cylinder-Head End |
| F |
Green |
Implement Cylinder-Rod End |
|

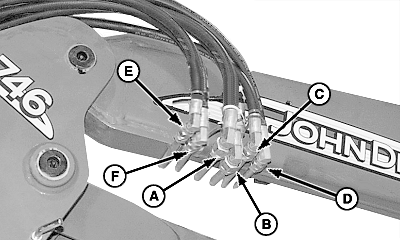

Three-Function Shown
|
