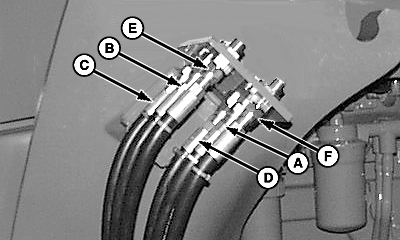

Identifying Hose Connections on 746 Loader Mid-Mount Bracket

NOTE: Hoses are identified by color-coded tie bands installed on ends near fittings. Colors identify hose function.

  Dust Plug/Cap Color Hydraulic Function
A Yellow Bucket Cylinder-Head End
B Black Bucket Cylinder-Rod End
C Blue Lift Cylinder-Head End
D Red Lift Cylinder-Rod End
E Orange Implement Cylinder-Head End
F Green Implement Cylinder-Rod End


W06167

Mid-Mount Bracket

CC03745,000051F -19-01SEP03-1/1
