Every 50 Hours - Check Mounting Frame Hardware (7020 Series Tractor)

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware every 50 hours.

Tighten ten M20 flange nuts (A) on each mounting frame to specification.

Specification

Mounting Frame-to-Tractor Hardware -Torque 610 N·m (450 lb-ft)


A-Flange Nuts, M20 (10 used)

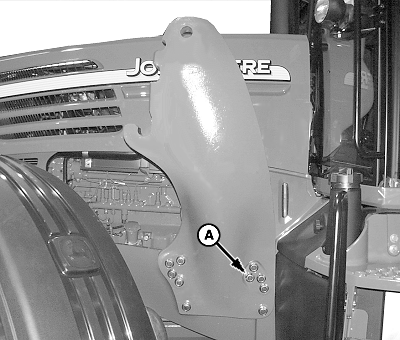

W06021

Left-Hand Side Shown

CC03745,0000520 -19-08SEP03-1/1
