Every 50 Hours - Check Mounting Frame Hardware (5020 Series Tractor)

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware every 50 hours.

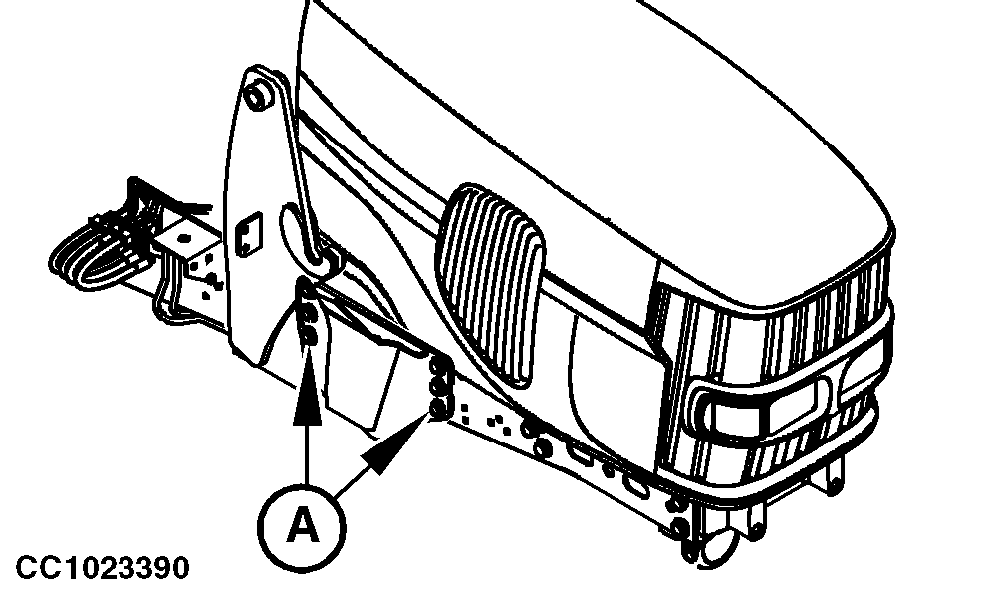

Tighten all M20 screws (A) on each frame to specification.

Specification

Mounting Frame Hardware -Torque 620 N·m (460 lb-ft)

CC1023390


A-M20

CC03745,0000521 -19-01SEP03-1/1
