Installing Lifting Cylinder Lock (531, 551, 631, 651, 661, 731 and 751 Loaders)

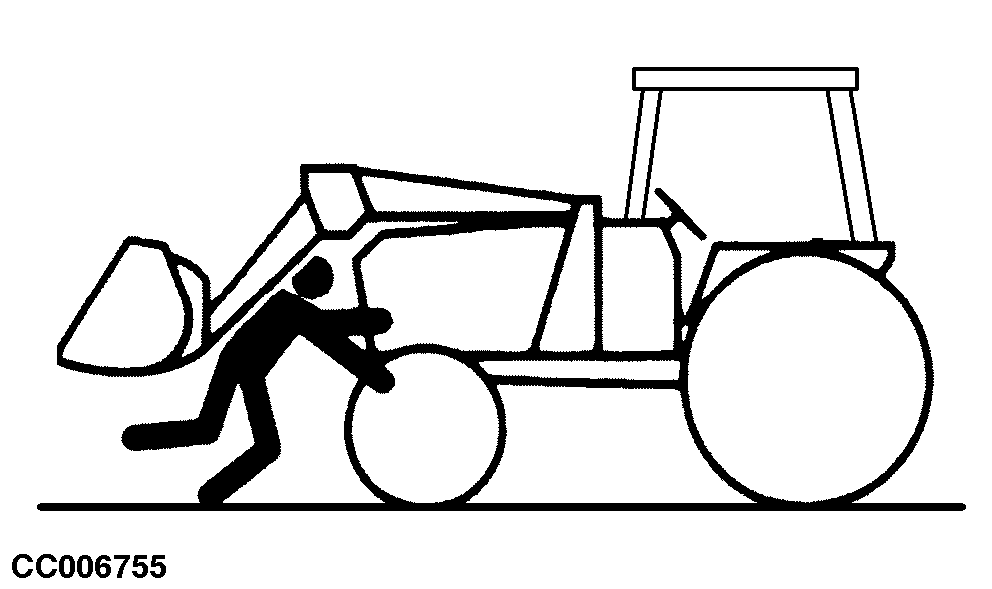

To install lifting cylinder lock, proceed as follows:

2. Place transmission in PARK, apply handbrake, shut off engine and remove key.

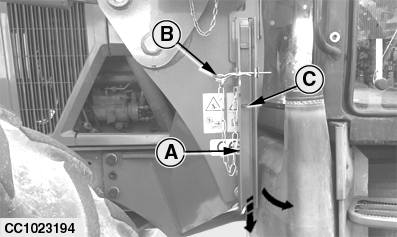

3. Remove spring-locking pin (B).

4. Pull cylinder lock (A) to disengage it from bracket (C).

5. Slide down cylinder lock (A).

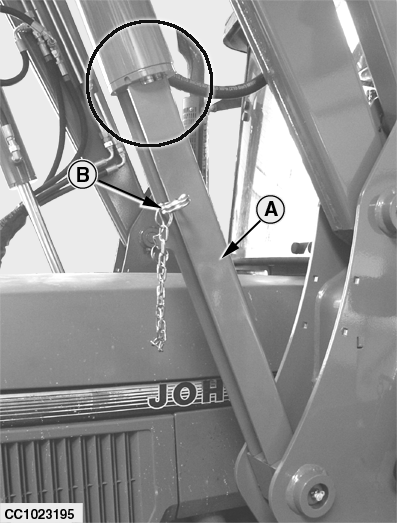

6. Install cylinder lock (A) on lifting cylinder rod.

IMPORTANT: The cylinder lock must be installed under cylinder body as shown.

7. Install spring-locking pin (B).

8. Slowly lower loader until weight of loader is fully supported by cylinder lock.

A-Cylinder lock
B-Spring-locking pin
C-Bracket

CC03745,0000523 -19-01SEP03-1/1
