Servicing Loader and/or Tractor Safely (Loader Attached)
 CAUTION:

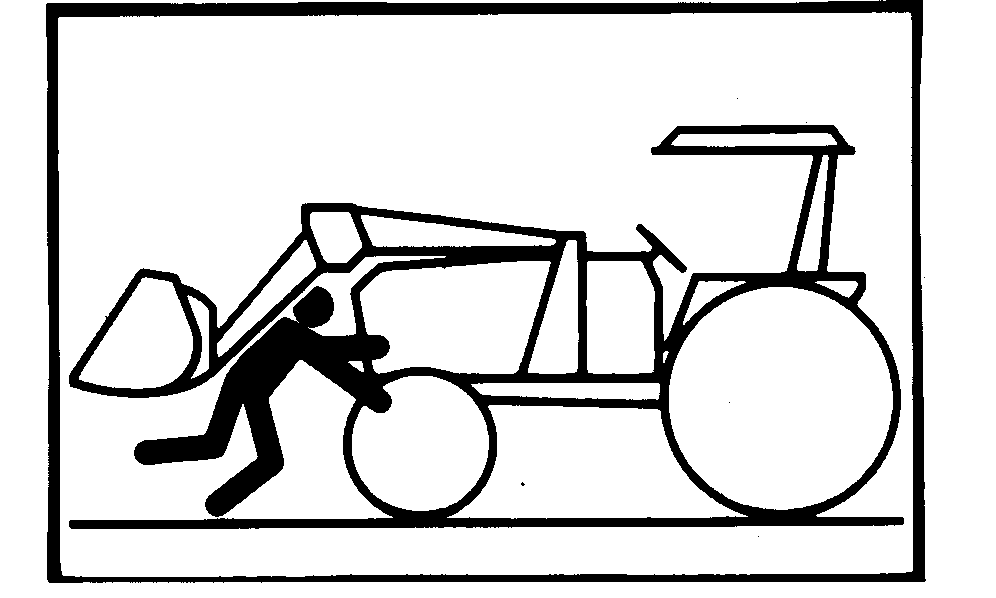

Help prevent bodily injury from accidental lowering of loader. Do not perform service around front of tractor with loader elevated and unsupported. Before lubricating or servicing the loader or tractor, perform the following:
1.
Apply handbrake.
2.
Place transmission in PARK.
3.
Lower loader to ground.
4.
Shut off engine.
5.
Relieve hydraulic pressure. (See Tractor Operator's Manual.)
6.
Remove key.
Normally, access to engine compartment and front of tractor can be made with bucket flat on ground.
However, due to tractor size and tire variations, it may be necessary to service tractor/loader with loader arms elevated. If so, do one of the following:
-

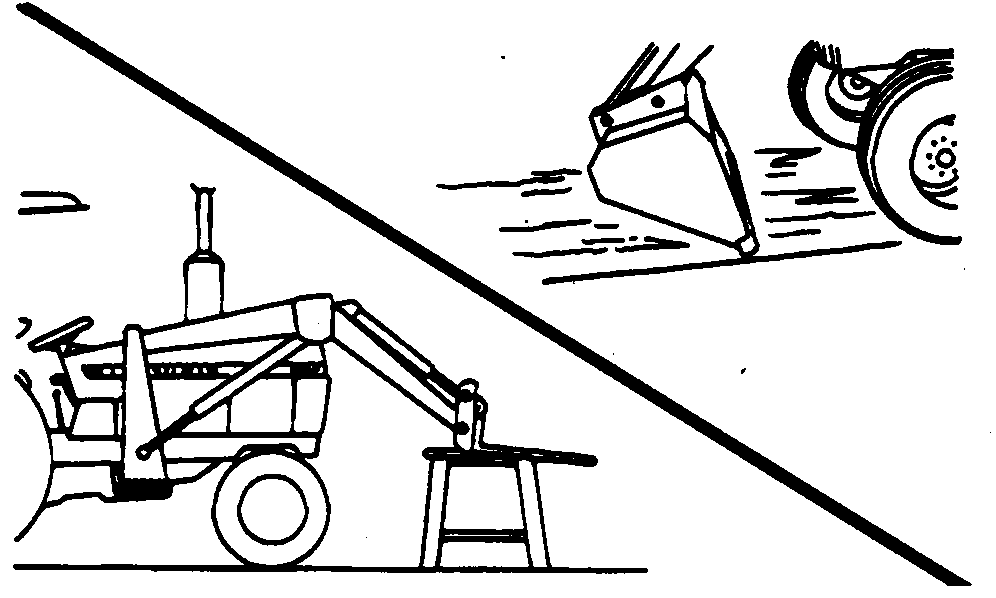

If equipped with bucket:
Dump bucket fully and lower loader to the ground.
-
If equipped with a forklift or bale fork:
Raise loader to required height and place safety stands under frame of attachment. Lower attachment on stands, relieve hydraulic pressure and ensure weight of loader is fully supported by safety stands.
-
If not equipped with an Implement:
Install cylinder lock (if available) on lifting cylinder rod. (See Installing Cylinder Lock in Service Section.)
or
Raise loader to required height and place safety stands under "boom arms". Lower loader on stands, relieve hydraulic pressure and ensure weight of loader is fully supported by safety stands.
|
