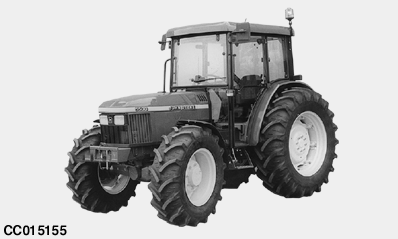

Approved Loaders for 5000 and 5010 MFWD Series Tractors with Standard Mounting Frame
The compatible loaders for 5000, 5010 MFWD series tractors are listed in the following table. Only the combinations marked OK are allowed. |
|
CAUTION:
To help prevent personal injury or death from tractor/loader rollover, do not attach to your tractor loaders which are not allowed.
| Loader Compatibility with 5000, 5010 MFWD Series Tractors | ||||
|---|---|---|---|---|
| Tractor Model | ||||
| 5300 - 5310 5400 - 5410 |
5500 - 5510 | |||

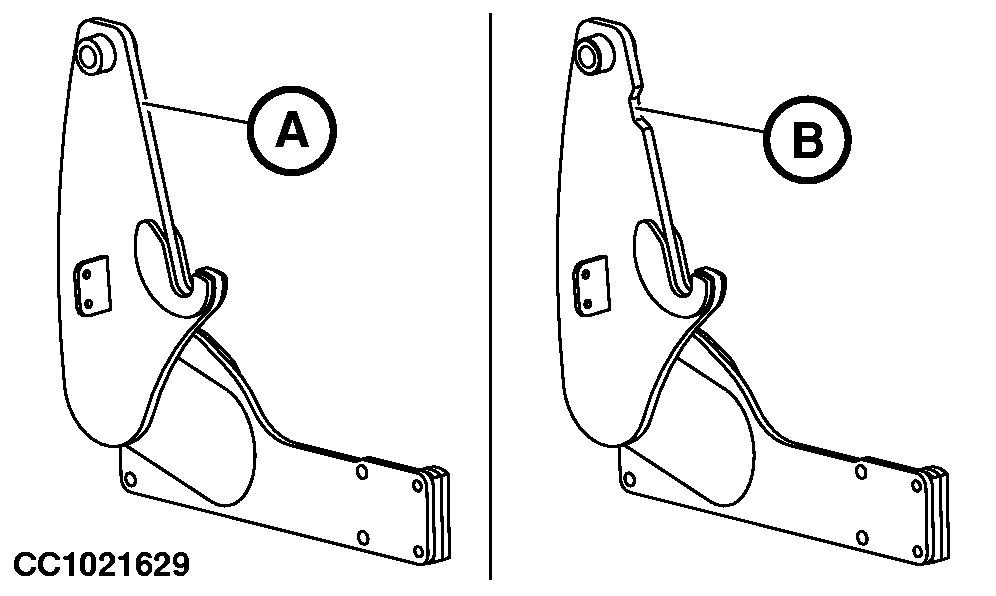

| Loader Model | Mounting Frame without notch (A) | Mounting Frame with notch (B) | ||
| 531 | NSL | OK | OK | OK |
| 531 | MSL | OK | OK | OK |
| 551 | NSL | OK | OK | |
| 551 | HSL | OK | OK | |
| 551 | MSL | OK | OK | |
| 631 | NSL | OK | ||
| 631 | HSL | OK | ||
| 631 | MSL | |||
|
NSL: Non Self-Levelling HSL: Hydraulic Self-Levelling MSL: Mechanical Self-Levelling |
CC03745,0000670 -19-26JUL04-1/2 |
|
MFWD: Mechanical Front Wheel Drive OK: Loader allowed on this tractor |
CC03745,0000670 -19-26JUL04-2/2 |
